2800 Compact
HP INVENTOR Back

Ďakujeme. Vaša správa bola odoslaná.

V našej spoločnosti dbáme na to, aby naši zákazníci boli spokojní.

Radi Vám poskytneme kvalitné služby šité na mieru.

Preto je potrebné, aby ste nám poskytli súhlas so spracovaním Vašich osobných údajov.


Požiadajte o cenovú ponuku

Bazénové tepelné čerpadlá

HP INVENTOR2800 Compact

HP BLACK Inverter |
HP GREEN On/Off |
HP GREEN Inverter Pro |
HP INVENTOR |
HP PREMIUM |
HP COMMERCIAL Inverter |
80-310kW T3 Tropical 50-60Hz |
50-450kW T3 Tropical/Winter v 50Hz alebo 60Hz |
Veľkosť bazéna
120 m³

Most efficient heating solution

MICROWELL HP Inventor is innovative pool water conditioning solution. With 28,4 kW capacity it is optimised for large pools (but it has a much wider use), delivering continuous and stable production of water heating or cooling. Designed on the principle of renewable energy source, MICROWELL HP Inventor is exceptionally efficiency, has low environment impact and low costs consumption; all a result of superior Microwell technology.

EAN CODE: 0710497754811

Kde nakúpiť
Sprievodca veľkosťami
Model
Veľkosť bazéna Letná sezóna s krytom/bez krytu
Maximálna veľkosť bazéna na zimné použitie
Vykurovací výkon leto Vzduch 27 °C, voda 27 °C
Vykurovací výkon Pružina/Autum Vzduch 15°C Voda 26°C
Vykurovací výkon zima Vzduch -15°C Voda 27°C
Chladiaci výkon Leto Vzduch 35 °C Voda 28 °C
Nastavenie teploty vody min-max
Chladenie chladiča Vzduch 40°C Voda 8°C
Tropické vykurovanie vnútorných bazénov Vzduch 45 °C Voda 30 °C
HP 2300 INVENTOR Ideal for 60m³ Max. pool size 80m³ 50m³ 23.0kW | 6.4 COP 17.6 kW | 5.4 COP 7.7kW 17.5kW +5°C ~ +45°C 11.9kW 28.5kW
HP 2800 INVENTOR Ideal for 80m³ Max. pool size 120m³ 65m³ 28.4kW | 6.4 COP 22.9kW | 5.4 COP 10.0kW 25.0kW +5°C ~ +45°C 14.6kW 34.8kW
HP 2400 PREMIUM Ideal for 60m³ Max. pool size 80m³ 55m³ 24.4kW | 6.9 COP 18.7kW | 6.3 COP 8.1kW 21.7kW +5°C ~ +45°C 12.4kW 29.6kW
HP 3000 PREMIUM Ideal for 80m³ Max. pool size 120m³ 70m³ 30.1kW | 6.9 COP 24.3kW | 6.3 COP 10.6kW 26.8kW +5°C ~ +45°C 14.9kW 36.4kW

Not sure which Heat Pump

should you choose?
Ako si vybrať tepelné čerpadlo?

Key data

Pool size | HP INVENTOR - Microwell
Pool size
80 m³
Heating Output | HP INVENTOR - Microwell
Heating Output
20,9-27,2 kW
Cooling Output | HP INVENTOR - Microwell
Cooling Output
20,1 kW
COP | HP INVENTOR - Microwell
COP
5,8-7,6
Operating Range | HP INVENTOR - Microwell
Operating Range
-15°C to +55°C

Customize your

Heat pump
HP 2800 INVENTOR Compact


Why Inverter from Microwell?

When it comes to enhancing your pool experience and extending your swimming season, the Microwell HP-2300 Inventor Compact Swimming Pool Heat Pump stands out as a top-tier choice. Packed with advanced features, this heat pump not only ensures optimal heating performance but also contributes to energy efficiency and eco-friendliness. Let's dive deeper into the key features that make the HP-2300 Inventor Compact the ultimate solution for year-round swimming comfort.


Eco-Friendly and Sustainable

Microwell is committed to eco-conscious pool heating solutions. The HP-2300 heat pump uses environmentally friendly refrigerants and energy-efficient technology, reducing your carbon footprint and promoting sustainability.

Space-Saving and Modern Design

With its compact and modern design, the Microwell HP-2300 is a space-saving marvel. Its sleek aesthetics blend seamlessly with your pool area while delivering uncompromised performance. Installation is a breeze, and it won't clutter your outdoor space.

Whisper-Quiet Operation for Serene Relaxation

Say goodbye to noisy pool equipment. The HP-2300 Inventor Compact Heat Pump operates quietly, ensuring a peaceful pool environment. Enjoy the serene sounds of nature while you relax poolside.

User-Friendly Controls for Effortless Management

Take control of your pool's temperature effortlessly. The user-friendly control panel simplifies temperature adjustments, letting you tailor settings to your liking and schedule. Your pool will always be ready for a swim.

GoldFin: Your Timeless Guardian

You ever wondered why heat pumps look blue or goldish (yellow) from the back? This the protection layers of the aluminum fins of the air exchanger. In Microwell we exclusively apply epoxy based GoldFin protection for all our products because it is just the best. GoldFin creates hydrophobic layer which repels water. In this case the heat pump in colder weather will freeze lot later than standard Bluefin and will defreeze itself faster than Bluefin. This will provide simply more heating. GoldFin is also superior in livelihood of the unit in salty air (coastal application) or sand. It will simply last longer.

Titanium Grade1 – no compromise

In Microwell we understand that livelihood of a heat pump is key factor when deciding for its purchase. Titanium Grade 1 ASTM B265M consists of at least 99.2% titanium, with small amounts of oxygen, iron and other compounds (carbon, nitrogen and hydrogen) up to 0.8%. The low impurity levels contribute to its exceptional corrosion resistance. This material also leave no trace, no odor and is neutral to its environment. All Microwell heat pumps are equipped exclusively with this type of titanium in their water exchangers.

Massive heat exchange area – up to 1.2m2

We apply extra surface of up to 1.2m2 of corrugated (twisted) titanium spiral. You can’t go around the physics, you can embrace it. The extensive heat exchange surface provides unprecedented performance and livelihood for each single Microwell heat pump.

Salt + Chlorine + UV + Electrolysis

Each Microwell heat pump is designed to work with various kinds of water, including those treated with chlorine, salt, electrolysis, sulfur or UV. This is mainly thanks to exclusive Titanium Grade1 ASTM B265M titanium tube material used inside water heat exchanger. Standard stainless steel or copper exchangers used in domestic heat pumps would typically last 1 month in pool application with water treated by chlorine. With Microwell heat pump you can be sure that materials used are designed for long harmless operations.

RS-485 Modbus

RS-485, in the context of the Modbus communication protocol, is a widely used interface for industrial control systems and automation applications. RS-485 is a standard for serial communication that allows multiple devices to communicate with each other over long distances. Each Microwell pool heat pump is equipped with RS-485 port based on ModBus protocol. You can program the heat pump to be voice-controlled and also integrated into your smart house control system. The distance to your Microwell heat pump has never been so close.

Technical data and more

If you want to know more just click


Operating on the thermodynamic principle, which is considered to be one of the most energy efficient systems for water heating or water cooling, Microwell heat pumps are capable of extracting ambient air from any environment ensuring maximum performance with an efficiency that remains unsurpassed on the market.

Microwell swimming pool heat pumps are designed for heating or cooling the water in pools and hot tubs at minimum operational costs.

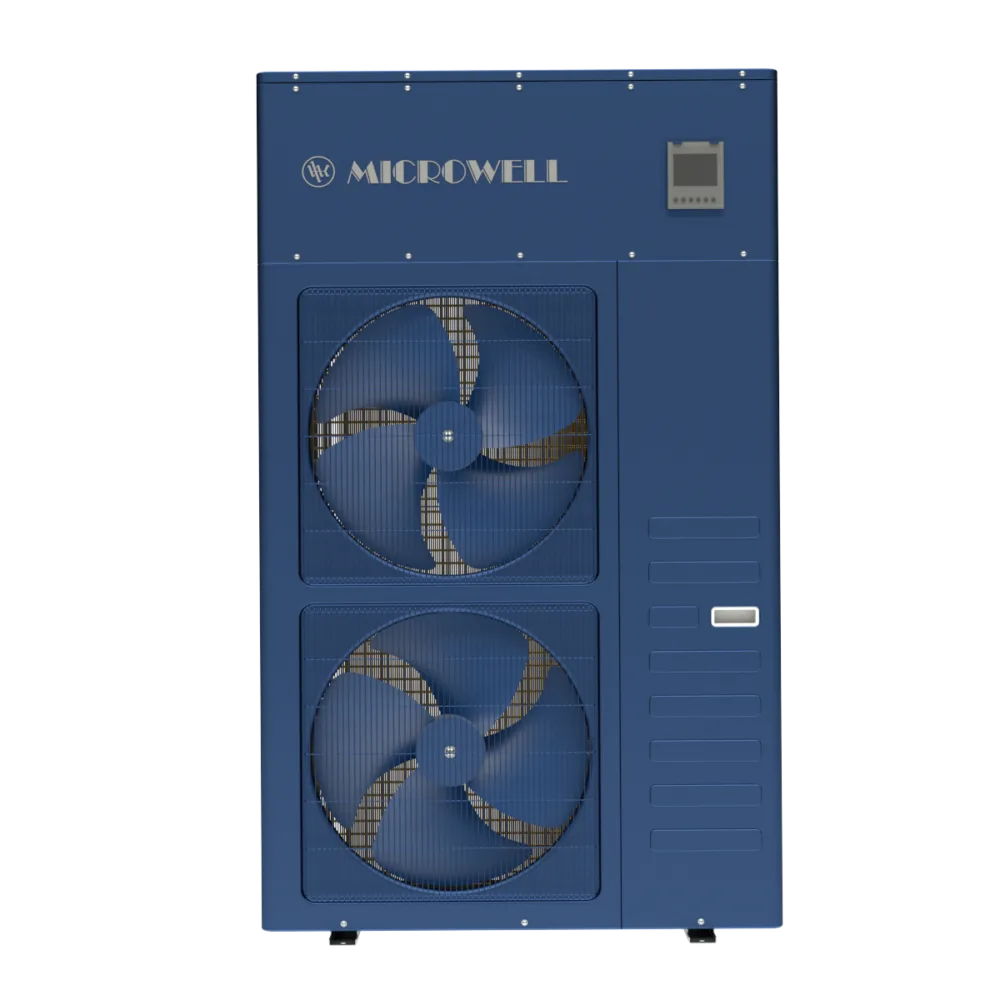

HP 2800 COMPACT INVENTOR is a powerful heat pump suited for pools up to 120m3 in volume.

HP 2800 COMPACT INVENTOR can provide up to 33,5kW of heating at typical seaside conditions of air temperature 26°C, water temperature 26°C and air humidity 80%. At typical inland conditions of air temperature 26°C, water temperature 26°C and air humidity 63% the heat pump provides with 28.4 kW. At dry conditions with humidity 35% the pump reaches above 25.8kW heating output.

Self-cleaning color is a recent innovation by Microwell. Main purpose is to ensure fresh and new look of the heat pump after years of working in exterior.

The final finish is a special paint made on the basis of years of experience and the latest knowledge in the field of nanotechnology. Color has nanopore structure that creates a microscopic film on the surface of the heat pump. Nanopores are too small for a dust or dirt to be caught up at. Despite that should any dirt be gathered on the cover, it will be washed away with the first rain.

Self-cleaning color is a true innovation that brings value for the customer.

Heat and cool with one device. Heat pump HP 2800 COMPACT INVENTOR is designed for heating and cooling. The control is very simple. When you set your desired water temperature, the heat pump will automatically heat or cool to keep your desired temperature. HP 2800 COMPACT INVENTOR provides with up to 25 kW cooling output.

High efficiency. Swimming pool heat pump is designed to compensate higher investment costs by very low operational costs compared to electric or gas heater. Microwell heat pumps are designed for a maximum efficiency reaching COP values up to 7. Efficiency of the heat pump is a ratio between power consumption (energy you pay) and actual heating or cooling output (energy you receive). With electric heater, the ratio is 1=1, i.e. what you consume and pay you get in the form of heat. Gas heaters may reach efficiency of 1.3. Heat pump’s COP of 7 means that you pay for 1kWh and you get 7kWh of energy. In cooling mode the heat pump provides with solid ratio of 4. Heat pump’s advantage is that it is independent from sun, day or night and weather. Currently the heat pump is the most efficient way of water conditioning in pools or hot tubs.

How is heat pump so efficient? Microwell HP 2800 COMPACT INVENTOR heat pump is able to extract the heat/cold that is present in ambient environment and leveraged pass it into the pool water. If you take your refrigerator, it creates cold inside the fridge by releasing the heat from the back. Heat pump takes the heat (energy or calories) from ambient air and transforms it into the water. The surrounding air cools down in the process. When working in cooling mode, the excessive heat from water is passed into surrounding air. When heating, higher the ambient air temperature is, more free energy can the heat pump extract and thus reach higher efficiency. At favorable conditions you pay around 15% of heat, i.e. 85% of heat is free. Microwell heat pump is built on currently the most eco-friendly refrigerant R410A.

Compact / Split. Microwell heat pumps are designed as compact or split machines. A Compact unit (HP 2800 COMPACT INVENTOR) is a one-box device that requires water and electrical connection. Its advantage is simple and quick installation. Disadvantage is that it is typically installed few meters from pool which may lead into visual or noise disturbance. A split heat pump (HP 2800 SPLIT INVENTOR) is just like a split air conditioner or ceiling cassette air conditioner. The idea is to have warm or cool water at no visual or noise disturbance. Split heat pump can be installed as far as 30m away from pool. Typically the unit is hidden by the house, on the roof or in the backyard behind trees. This is also very safe for children.

Microwell heat pumps are sold throughout entire network of professional resellers with strong technical support. The distributors will gladly handle any of your pre and post sales technical matter.

HP 2800 COMPACT INVENTOR is equipped with Microwell unique microECONOMY+ feature offering the most economy circulation pump control. Microwell swimming pool heat pumps can be connected to existing water system (filtration) or it can have an individual circulation pump. A swimming pool heat pump needs continuous water flow to heat or cool. HP 2800 COMPACT INVENTOR tells the circulation pump when heat pump needs to heat or cool. The circulation is turned on and off according to this request. Microwell applies specially designed software that will sample the water and also put the whole system into sleep for the time when heating or cooling is not required. This saves precious energy and results in lower operational costs of the pool.

Full year heating. HP 2800 COMPACT INVENTOR is also designed for a full year heating, particularly winter time. Typical winter can experience air temperatures -15°C. Heat pump thus needs to be protected against possible frost damage and equipped with systems that will keep the heat pump’s performance at desired level.

Long livelihood. Microwell swimming pool heat pumps are designed for 15+ years livelihood. The product requires minimal maintenance. You only need to ensure cleanness of air exchanger from leaves, dust and other particles.

Titanium. Amount of titanium is very important to a swimming pool heat pump. The amount talks about the actual heat transfer area, i.e. power and efficiency of each heat pump. Microwell is proudly using 40% more titanium in heat pumps’ water exchangers. This maximizes the performance and efficiency COP&EER far ahead of others. HP 2800 COMPACT uses 1.1m2 of titanium whereas others use less than 0.25m2.

Dimensions /WxHxD/: 942 x 1550 x 360 mm

Microwell HP 2800 COMPACT INVENTOR consumes on average 3.59kW while heating to 28,4kW (air temperature 26°C, water temperature 26°C, relative humidity 63%) at 38dB(A) only confirms how well designed and manufactured the pumps are.

Control. The heat pump is controlled by built-in digital panel. This panel can be installed anyway in pool area, technical room or inside the house for your convenience.

Extra features. Microwell is continuously focusing on customers’ demands and wishes. Each heat pump is equipped with special features unique about Microwell heat pumps.

antiVIBRATION+ offering special set of mounting silent blocks eliminating excessive vibration and noise.

microECONOMY+ offering the most economical circulation pump control.

antiFREEZE+ offering non-stop antifreeze protection of your heat pump.

WINTER module allowing the pump to work down to -15°C of ambient air temperature.

Condensate tray defrost and Heat exchanger frost protection to complete the winter package and operations down to -15°C of ambient air temperature.

Microwell has been in business for 25 years, currently exporting to 30+ countries worldwide.

Typically, the unit is in stock near you. Due to many different ways the unit can be tailored on demand, it may take up to 10 days to deliver the unit to you.

If you need assistance in sizing the right heat pump for you please use our online HOW TO CHOOSE tool.

Or click on HOW CHOOSE A HEAT PUMP on the left side of your screen.

HP 2800 INVENTOR COMPACT product components

Offering an in-depth look at the HP 2800 Inventor Compact, explore its intricate components for a comprehensive understanding of its advanced features.


360 view

PRODUCT VIDEO:

Technické údaje

Produkt
Objem bazéna (m³ / s krytom /bez krytu)
Tepelný výkon (kW / A27 / W27 / RH80%)
Tepelný výkon (kW / A15 / W26 / RH70%)
Chladiaci výkon (kW / A35 / W28 /RH80%)
COP
Elektrický výkon (kW)
Pracovná teplota (°C)
Prietok vody (m³h / kPa)
Vstupné napätie (V AC/ph)
Tepelný výmenník (Typ titánu)
Množstvo titánu (m²)
Hladina hluku (dB(A) / 1m)
Príruba na pripojenie potrubia cirkulačnej (mm /palec)
Rozmery (Š x V x H)
HP 900 BLACK Inverter
40/30
9.0
6.6
4.9
10.6-5.8
0.2-1.6
-7°C...+43°C
2.7
230V/1pH/50Hz
Titanium Gr 1 ASTM B265
0.4
49
50
932x609x377
HP 1000 GREEN On-Off
45/30
9.2
6.4
4.9
4.7-6.1
1.4
-5°C...+43°C, s príslušenstvom: -15°C...+60°C
4
230V/1pH/50Hz
Titanium Gr 1 ASTM B265
0.42
46
50 (6/4´´)
910x620x360
HP 1100 BLACK Inverter
45/35
11.5
8.6
6.5
10.9-5.9
0.2-1.9
-7°C...+43°C
3.3
230V/1pH/50Hz
Titanium Gr 1 ASTM B265
0.5
50
50
932x609x377
HP 1100 GREEN Inverter Pro
65/30
10.8
7.7
4.5
4.5-14
0.20-1.71
-15°C...+43°C
3-5
230V/1pH/50Hz
Titanium Gr 1 ASTM B265
0.52
42.8
50 (6/4´´)
990x657x340
HP 1400 GREEN On-Off
55/40
12.3
8.6
6.2
4.7-6.0
1.8
-5°C...+43°C, s príslušenstvom: -15°C...+60°C
5.3
230V/1pH/50Hz
Titanium Gr 1 ASTM B265
0.6
52
50 (6/4´´)
1000x665x385
HP 1500 BLACK Inverter
65/50
15.4
11.5
6.7
10.7-5.7
0.3-2.7
-7°C...+43°C
4.4
230V/1pH/50Hz
Titanium Gr 1 ASTM B265
0.6
53
50
1015x766x427
HP 1500 GREEN Inverter Pro
80/40
15.0
10.5
6.7
4.6-15
0.27-2.28
-15°C...+43°C
5-7
230V/1pH/50Hz
Titanium Gr 1 ASTM B265
0.72
45.5
50 (6/4´´)
990x657x340
HP 1700 GREEN On-Off
70/50
16.2
11.3
8.3
4.7-6.0
2.4
-5°C...+43°C, s príslušenstvom: -15°C...+60°C
7.1
230V/1pH/50Hz
Titanium Gr 1 ASTM B265
-
54
50 (6/4´´)
1000x665x385
HP 1700 Green Inverter Pro
95/45
17.0
11.5
7.5
4.6-15
0.29-2.5
-15°C...+43°C
6.5-8.5
230V/1pH/50Hz
Titanium Gr 1 ASTM B265
0.8
46
50 (6/4´´)
954x648x429
HP 2100 GREEN Inverter Pro
105/50
21.0
14.5
9.5
4.6-14.8
0.41-3.15
-15°C...+43°C
8-10
230V/1pH/50Hz
Titanium Gr 1 ASTM B265
0.9
45.9
50 (6/4´´)
954x748x429
HP 2300 Inventor
80/60
23.0
17.6
17.5
5.4-6.0
3.5-5.5
-5°C...+43°C, s príslušenstvom: -15°C...+60°C
8-10
400V/3pH/50Hz
Titanium Gr 1 ASTM B265
0.95
56
50 (6/4´´)
940x1550x360
HP 2400 Premium
80/60
24.4
18.7
21.7
6.3-6.9
3.51
-5°C...+43°C, s príslušenstvom: -15°C...+60°C
8-10
400V/3pH/50Hz
Titanium Gr 1 ASTM B265
1.2
56
50 (6/4´´)
942x1550x360
HP 2700 GREEN Inverter Pro
135/60
27.5
18.0
11.9
4.6-15
0.48-3.91
-15°C...+43°C
10-12
400V/3pH/50Hz
Titanium Gr 1 ASTM B265
1.0
47.9
50 (6/4´´)
1084x948x429
HP 2800 INVENTOR
120/80
28.4
22.9
25.0
5.4-6.0
4.2-7.0
-5°C...+43°C, s príslušenstvom: -15°C...+60°C
8-12
400V/3pH/50Hz
Titanium Gr 1 ASTM B265
1.2
56
50 (6/4´´)
940x1550x360
HP 3000 PREMIUM
120/80
30.1
24.3
26.8
6.3-6.9
4.34
-5°C...+43°C, s príslušenstvom: -15°C...+60°C
8-12
400V/3pH/50Hz
Titanium Gr 1 ASTM B265
1.4
56
50 (6/4´´)
942x1550x360

Výrobca si vyhradzuje právo na zmenu technických údajov bez predchádzajúceho upozornenia.
